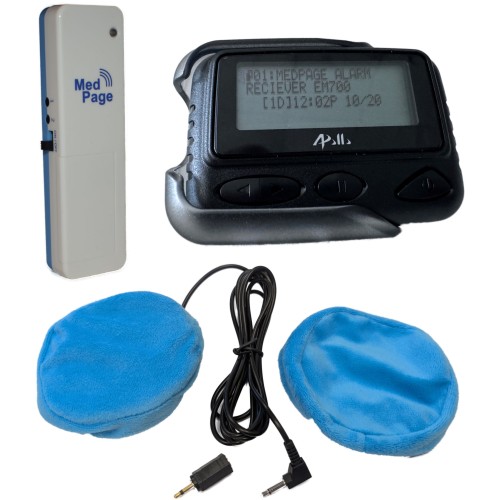

PS1DTX3M700 Soft Touch Pillow Switch with Long Range Transmitter and Data Message Pager

✓ Soft Touch Pillow Switch with Long-Range Transmitter and EM700 POCSAG Pager, ideal for professional care environments:
✓ Extended Wireless Range: Transmits reliably up to 400 metresperfect for larger care homes, stone-built facilities, and challenging signal environments.
✓ Gentle Touch Activation: Soft-touch surface responds to minimal pressure, supporting residents with limited mobility or dexterity.
✓ Clear Call Identification: Integrated with the EM700 POCSAG pager, each alert displays detailed data messagesmaking it easy to identify which patient or device triggered the call.
✓ Scalable for Complex Settings: Supports multiple devices and users, streamlining response coordination across wards, rooms, or buildings.

Introducing the Soft Touch Pillow Switch with Long-Range Transmitter and EM700 POCSAG Pagera powerful, user-friendly solution designed for larger care environments and complex building layouts. With a wireless range of up to 400 metres, it ensures dependable signal transmission even through stone walls and across expansive facilities. The ultra-sensitive pillow switch requires only minimal pressure to activate, making it ideal for residents with limited mobility or strength. Paired with the EM700 pager, each call is displayed with clear, data-rich messaging, allowing staff to instantly identify which patient or device triggered the alert. Whether you're managing multiple users, coordinating across wards, or enhancing safety in heritage buildings, this system delivers clarity, reach, and peace of mind.

Key Features

✓ Ultra-Soft Activation: Requires minimal pressureideal for users with reduced strength or dexterity.
✓ Long-Range Wireless Transmission: Reliable signal coverage up to 400 metres, even through stone walls and multi-storey layouts.
✓ EM700 POCSAG Pager Integration: Displays detailed data messages for precise call identification and faster response.
✓ Multi-Device Compatibility: Supports multiple switches and transmittersperfect for busy care homes and shared living spaces.
✓ Robust & Discreet Design: Durable yet unobtrusive, blending seamlessly into bedsides or seating areas.
✓ Enhanced Safety & Efficiency: Enables quicker, more accurate staff response across larger or more complex care environments.

Technical Features MPPS1 Pillow Switch
Dimensions: 8cm x 8cm x 1.1cm
Connector Cable: 2 Metres
Connector type: 3.5mm Mono Jack Plug (3.5mm to 2.5mm Jack Plug included)
Available adaptors: 3.5mm to 6.3mm Jack Plug
Activation Force: 70-110g
Includes 2 x washable covers
Hook & Loop mount with safety pin
Antimicrobial materials

Technical Features EM700 Pager
Frequency: VHF 430-470MHz
Power: 1 x AAA battery
Bit Rate: 512/1200/2400bps
Channel Spacing: 12.5KHz, 25KHz,
Dimensions: 73mm x 50mm x 20mm
8 Capcodes for POCSAG
Weight: 49.5g (excluding battery)

Technical information NMDTX3
Multi-Function sensor transmitter
Long range transmission (up to 400M)
Trigger Input Socket 2.5mm
Trigger mode selectable for N/O or N/C
Secure On/Off Power switch (selectable)
FSK transmission 433 MHz @ 10mW
POCSAG Message programmable
Optional programming software available (for trade only)
Dimensions: L 145mm W 40mm D 22mm
Powered by 2 x AAA batteries
12 Month typical use before battery change
Low battery warning LED with transmission message
System status LED
Mode Selection Options:
Bed/Chair leaving alarm (with 15-minute alarm delay option)
Floor pressure mat alarm
Magnetic door sensor alarm (with door open timer)
Water level & Enuresis sensor detection, Pillow Switch
Programmable alert messages (when used with data pager EM300)
Pre-programmed standard messages for Bed, Door, Floor mat.
Multi-Receiver addressable
