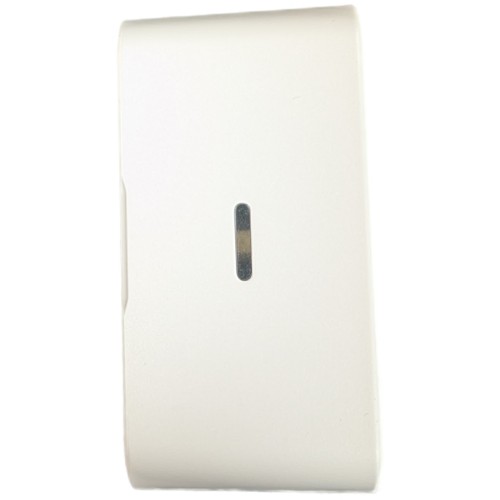

KFDU031D Wireless Vibration and Knock Detection Alarm with Adjustable Sensitivity

✓ Compact vibration detection sensor with integral transmitter
✓ Use for break-glass detection, door knock/opening and closing, Medicine Cabinets etc.
✓ 6-level sensitivity adjustment provides detection from a light tap/touch to a heavy thump
✓ Compact size with 2-year battery life and alarm transmission range of up to 100M

Compact Wireless Vibration Sensor A discreet, high performance vibration detector designed for security and safety applications. Ideal for break glass monitoring, door knock/open/close detection, medicine cabinets, and other tamper sensitive locations. The sensor features a 6 level sensitivity adjustment, allowing precise tuning from a gentle tap to a heavy impact. Its compact housing, 2 year battery life, and up to 100m transmission range make it a reliable choice for both residential and commercial alarm solutions.

Compatible Pagers/Alarms

KFD-PCP1
MPPLV4
PAG31
NMDRX

Key Features

• Compact vibrationdetection sensor with integrated wireless transmitter
• Ideal for breakglass alerts, door knock/open/close detection, and cabinet security
• 6level adjustable sensitivity from a light tap to a strong impact
• Reliable detection for medicine cabinets, drawers, safes, and other tamperrisk items
• Long battery life delivering up to 2 years of battery operation (based on 10 ops P/D)
• Alarm transmission range of up to 100m
• Fast installation with compact, unobtrusive housing
• Compatible with Medpage wireless alarm receivers and control units

Technical Features
Radio Frequency 433MHz
Transmission Range: Up to 100M (open field)
Battery Type: Lithium CR2032
Standby Current: 4uA Operating: 10mA
Low Voltage Threshold: 2.4V with low battery LED and alarm transmission
Typical Battery Life: 24 Months
6-Level Sensitivity Adjustment
Dimensions: H 64mm W 30mm D 14mm
Internal on/off power switch
Double sided fixing tape included
