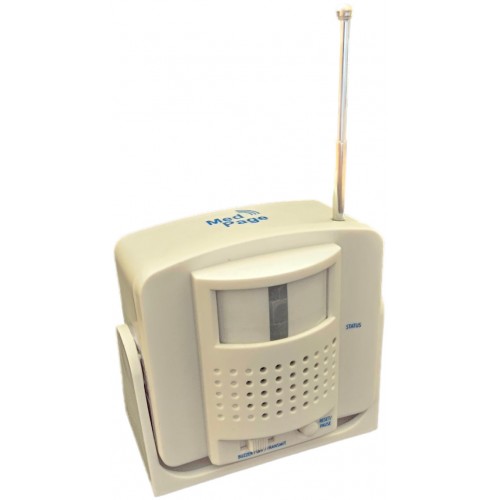

MP-PIR21 PIR Movement Sensor Alarm with Narrow Detection Angle Beam

? Wireless battery powered PIR movement sensor alarm
? Shuttered PIR sensor detects movement from a narrow beam
? Suited to elderly wander detection and bed exit applications
? Alarm pause button to temporarily disable movement detection

The MP-PIR21 by Medpage is a motion detection sensor with selectable buzzer alarm or integral 433MHz transmitter. On movement detection the selected alarm type is activated. A convenient stand enables desktop use and provides an option for wall fixing with the included self-adhesive hook and loop or screws. The PIR sensor is shuttered to restrict the angle of view of the sensor to a narrow beam, making it more suitable for care applications such as wandering detection or bed exit. Not recommended for general security applications.

Compatible with these alarm receivers

MP-PAG31
MPPLV4
MPCSA11
PAG-11C
CTMV

Key Features

• Narrow beam PIR sensor
• Movement activated alarm
• Selectable alarm buzzer or radio frequency transmitter
• Pause button to temporarily disable movement sensor
• Table-top stand bracket with adjustable tilt
• Wall fixing kit included
• Extendable transmitter antenna for increased range
• Battery or DC adaptor powered
• Not suitable for general security applications
• Quick and easy to install and use no tools needed

Technical Features MP-PIR21 (PIR Movement Sensor)
Angle of detection 10 degrees at 4 Metres
Beam detection range 4-8 Metres
Radio frequency 433MHz
Random radio address codes
Transmission range 50-80 Metres
Extended antenna height 9cm
Audio buzzer output 70dB at 10cm
Power 3 x AA 1.5V batteries
Typical battery life 12 months
Power DC adaptor 8-12V @ 300mA
Product weight 106g (excluding batteries)
Product dimensions W 8cm H 7.5cm D 4cm
