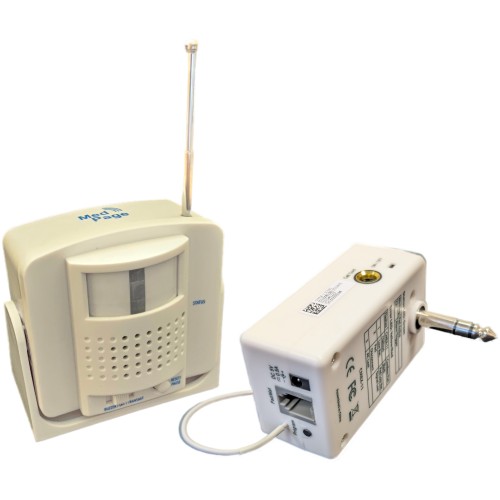

PR21CX11 PIR Narrow Beam Movement Sensor with Wireless Nurse Call Interface Receiver

✓ Narrow beam (10) movement sensor (MP-PIR21), suitable for bed leaving detection, W/C visits
✓ PIR with integral transmitter wirelessly signals the plug in to nurse receiver (CMEX-11) for alarm notifications
✓ Quick and easy install with intuitive user interface, no wiring required.
✓ Suitable for detection of wandering residents/patients

The PR21CX11 is a precision movement detection solution designed for care environments, combining the MP-PIR21 narrow beam sensor (10) with the CMEX-11 wireless nurse call receiver. Ideal for monitoring bed-leaving, W/C visits, and resident wandering, it wirelessly triggers alerts with no wiring required. Quick to install and easy to use, it offers targeted coverage and reliable performance to support safer, more responsive care.

Whether you're enhancing safety in a care home or hospital setting, the PR21CX11 offers peace of mind with minimal disruption.

Key Features

• Targeted Detection: 10 narrow beam PIR sensor ideal for focused monitoring zonesperfect for bedside or doorway placement.
• Wireless Alerting: Integrated transmitter instantly signals the CMEX-11 plug-in receiver, triggering nurse call alerts without delay.
• No Wiring Required: Fast, intuitive setup with a user-friendly interfaceno tools, no fuss.
• Versatile Use: Designed for care environments to support fall prevention, night-time monitoring, and safeguarding of vulnerable individuals.

Technical Features MP-PIR21
Angle of detection 10 degrees at 4 Metres
Beam detection range 4-8 Metres
Radio frequency 433MHz
Random radio address codes
Transmission range 50-80 Metres
Extended antenna height 9cm
Audio buzzer output 70dB at 10cm
Power 3 x AA 1.5V batteries
Typical battery life 12 months
Power DC adaptor 8-12V @ 300mA
Product weight 106g (excluding batteries)
Product dimensions W 8cm H 7.5cm D 4cm

Technical Features CMEX-11
Radio receiver
Frequency: 433Mhz
6.3mm 1/4 stereo jack plug for nurse call point (out)
6.3mm socket to reconnect nurse call switch (peer push) (in)
RJ10 input socket for cabled alarm sensor pad (Bed, Chair, Floor)
Output selectable for N/O N/C operation
Mechanical relay output for volt free connection
Power status LED with low battery warning
Alarm status indicator LED
Powered by 3 x AAA alkaline batteries or optional 5V DC adaptor
DIM: H75mm W43mm D35mm (including bracket)
