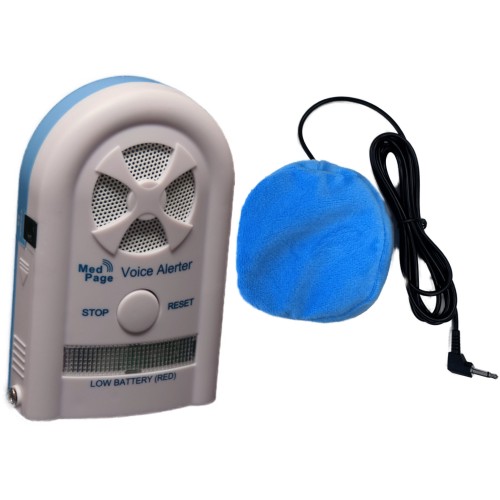

CTMV-PSKIT Pillow Switch Activated Recordable Voice Announcer with Relay Output

✓ Three independent channels, each capable of playing a personalised recorded message when triggered
✓ Softtouch pillow switch activation, requiring minimal force for effortless use by people with limited dexterity activate with face or a soft hand tap
✓ Dedicated nursecall output, enabling direct connection to a nursecall system for accessible patient assistance
✓ Customisable voice recordings, allowing tailored prompts and alerts for individual care needs

The CTMV is a versatile 3channel signal receiver designed to provide personalised, accessible alerting for users with limited mobility or dexterity. Each channel can store and play a custom voice message when triggered by a paired transmitter, ensuring clear and meaningful notifications. An additional voice recording can be activated using the softtouch pillow switch, which requires only minimal pressure, making it ideal for disabled users or those with poor hand function. With its dedicated output socket for connection to a nursecall point, the CTMV offers a practical and reliable solution for patients who need an easy way to request assistance.

Key Features

• Three independent receiver channels, each able to play a personalised recorded message on trigger
• Custom voice prompts, allowing tailored alerts for individual users or care environments
• Softtouch pillow switch activation, requiring only minimal pressure for effortless use
• Operable by face, cheek, or a soft hand tap, ideal for users with severely limited dexterity
• Dedicated nursecall output socket, enabling direct connection to a nursecall point
• Reliable wireless triggering, ensuring consistent playback of assigned messages
• Accessible alerting solution, designed for disabled users or those with poor mobility
• Flexible installation options, suitable for bedside, chairside, or cushionmounted use

Technical Features CTMV Voice Alert Monitor
Dimensions: H: 115mm W: 72mm D: 23mm
Power source: 3 x AAA batteries or Optional DC power adaptor
Recordable message for call switch trigger
Frequency: 433MHz
3 Recordable audio/speech messages (up to 15 seconds)
Single or looped message playback
Secure on/off power button
Hi/Low alarm volume switch (95-80dB)
N/O volt free trigger input (Channel 1 message playback)
Output for nurse call or Telecare cable connection

Technical Features MPPS1 Pillow Switch
Dimensions: 8cm x 8cm x 1.1cm
Connector Cable: 2 Metres
Connector type: 3.5mm Mono Jack Plug (3.5mm to 2.5mm Jack Plug included)
Available adaptors: 3.5mm to 6.3mm Jack Plug
Activation Force: 70-110g
Includes 2 x washable covers
Hook & Loop mount with safety pin
Antimicrobial materials
