TumbleCare Floor pressure mat bed exit alarm with portable carer alarm (TUMFMDRXTK)

? Standing on the mat triggers an alarm transmission from the controller
? Portable alarm receiver provides carer with active alarm notification
? Can be used for bed exit detection & general floor pressure mat security
? Heavy-duty non-slip design for flooring and carpets

This is a complete floor pressure mat alarm kit from TumbleCare comprising of a heavy-duty pressure mat sensor, alarm control transmitter and a desktop visual and audible carer alarm station. The system can be used for domestic and professional care fall prevention, when a floor mat is preferred to a bed sensor. When a person stands on the pressure sensor mat the alarm controller transmits a signal to warn the carer of bed exit. The alarm station flashes bright coloured LEDs along with tonal alarm. Up to 5 sensor/controllers can be paired with single or multiple alarm stations.

* Battery life can vary depending on alarm duration setting (30 second or continuous)

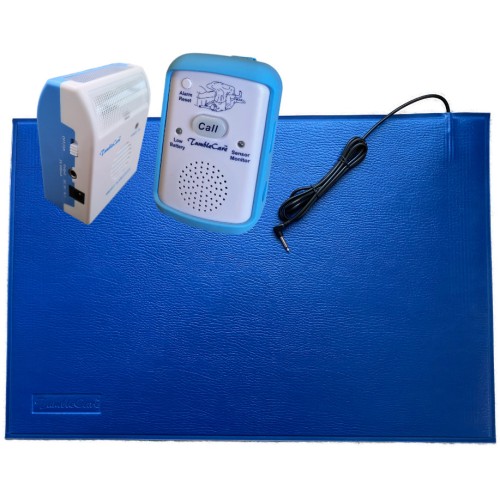

TUMFMDRXTK Floor pressure mat kit includes: 1 x BTXMED-04 alarm controller transmitter, 1 x MED-04FP floor pressure mat, 1 x NMDRXT flashing light tonal alarm receiver, all batteries included.

Need to expand this system with extra items to monitor other residents?

TUMCS Alarm transmitter with chair sensor
TUMBS Alarm transmitter with bed sensor
TUMFM Alarm transmitter with floor pressure pad

Key Features

• Simple and reliable means of bed exit detection
• Instant alarm transmission when body weight is detected
• Wireless notification to carer with flashing light and tonal alarm
• Extra floor sensors can be added for additional patients
• Durable long-lasting floor sensor mat
• Quick and easy to set up and use
• Includes 5-Channel alarm receiver (5 different alarm light colours)
• Chlorine resistant floor mat materials
• Non-slip design for carpets and floors
• Up to 5 controller/sensors can be used with single or multiple alarm receivers

Technical Features (Alarm Controller)
Alarm radio frequency 433MHz
Transmission range: 100M (open field)
Power: Battery 3 x AA 1.5V Alkaline (included)
Power: DC 6V adaptor 300mA (optional)
Dual trigger inputs: 1 x RJ11 (pads) 1 x 6.3mm (contact/nurse call switch)
Battery health monitoring with low warning LED
Sensor pad monitoring LED
Dimensions: 115mm x 75mm x 30mm
Weight: (excluding batteries) 130g

Technical Features (Wireless Alarm Station)
Top focusing lens high intensity ceiling projecting LEDs
Front facing selectable LED colours (5) to identify transmitter device
Multiple active alarm indication - assigned transmitter colours flash alternately until alarms are cancelled
Powered by 3 x AAA batteries or optional mains AC power adaptor
Typical battery life 3- 6 months*
Dimensions: H: 80mm x W: 68mm x D: 38mm
5 Alarm channels
3-level alarm tone volume switch (up to 96dB)
Latched or timed alarm duration (continuous or 30 seconds)
Power/signal/battery status LED
Frequency 433 MHz
100 metre transmission range
Vibrating pad output 3v @ 300ma via 3.5mm jack socket (for deaf carers)
On/off top light selection switch
Compatible with all Easylink/Medpage transmitters

Technical Features (Floor Pressure Mat)
Dimensions: 91.44cm x 60.96cm
Cable connection
Cable length: 2.5M
Connector type: RJ11
Chlorine resistant to 10pp1000
