BTX21-ELES01K Multiple Patient Incontinence Monitoring System with Fabric Sensor and Pager Alarm

? Professional enuresis monitoring system for care home and hospital use
? Can be used as a stand-alone one-to one patient system and for multiple patients
? Included MP-PAG31 pager can be used with up to 3 individual bed monitors
? BTX21-MP can connect directly to an existing nurse call system

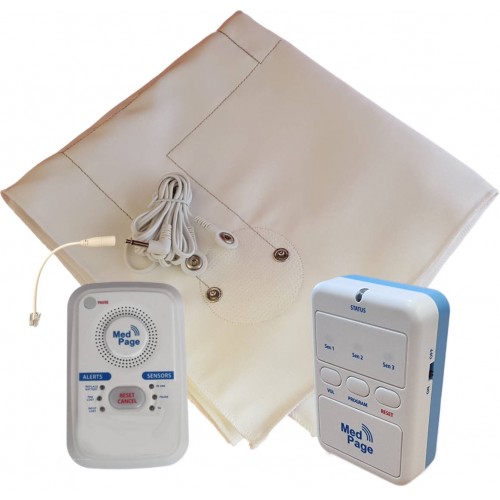

Included: 1 x BTX21-MP sensor controller transmitter, 1 x MP-PAG31 caregiver pager, 1 x ELES-01S cotton fabric enuresis sensor, connector leads for this system, all required batteries.

Unlike most enuresis sensors, the ELES-01S cotton blend sensor can be used directly under a bedsheet, reducing the likelihood of bedsores, or sweat rashes. The BTX21-MP is an easy to use, sophisticated, sensor monitoring alarm signalling transmitter, which can signal the included 3-channel MP-PAG31 alarm pager and provide simple connection to a cabled nurse call point. The sensors are easily replaced and are tumble dry and washing machine safe. The system is suitable for domestic, care home, and hospital use.

Key Features

• All-inclusive enuresis bed monitoring alarm system
• Minimal installation and setup factory preconfigured
• Cotton blend sensor for use directly und a bedsheet or chair cushion
• Provides a wireless caregiver incident notification alarm
• Connectable to most cabled nurse call systems for multi-patient monitoring
• Included MP-PAG31, 3-channel alarm pager with tone and vibration alert
• Washing machine and tumble dry safe enuresis sensor
• BTX21-MP with on device nurse help call button
• Suitable for domestic, care and residential home, and hospital use

Technical Features ELES-01S Enuresis Sensor
Machine washable and tumble dry safe sensor
Sensor connector cord (3M) with press stud connectors
Approximate sensor wash cycles: 200
Quick dry cotton material
Dimensions: Sensor 750 x 450mm
Connector lead 2M
Connector: 2.5mm Mono Jack plug
2.5mm to RJ11 converter adaptor included

Technical Features (BTX21-MP Sensor Transmitter)
Sensor triggered transmitter
Transmission frequency: 433MHz
Transmission range: 75-150M
Powered by 3 x AA 1.5V batteries
DC power adaptor input: 6V @1 amp
Output 6.33mm socket for nurse call connection
Input 6.3mm socket for cabled nurse call switch
Dimensions: 115mm x 75mm x 30mm
Locking (screw) battery compartment
Concealed external on/off switch
Connector cable strain relief clamp
Selectable alarm delay 2 seconds, 15 minutes
Wall fixing bracket included

Technical Features (MP-PAG31 Pager)
Power source: 2 x AA batteries
Receiver range: 100 metres
Radio frequency: 433MHz
Dimensions: L: 80mm x H: 52mm x W: 25mm
Weight: 63g (without batteries)
Learns in (pairs) with 3 transmitters
3 Channel pager receiver with LEDs for Sen 1, Sen 2, Sen 3
Volume/vibration select button
Alarm cancel/reset button
Strong belt clip and lanyard attachment clip
Simple transmitter pairing
Status indicator LED: Low battery, active alarm
Alert options: Vibrate only, vibrate and low tone or vibrate and high tone volume
Pager low battery warning and sensor low battery (with compatible transmitters)
Side power On/Off switch
