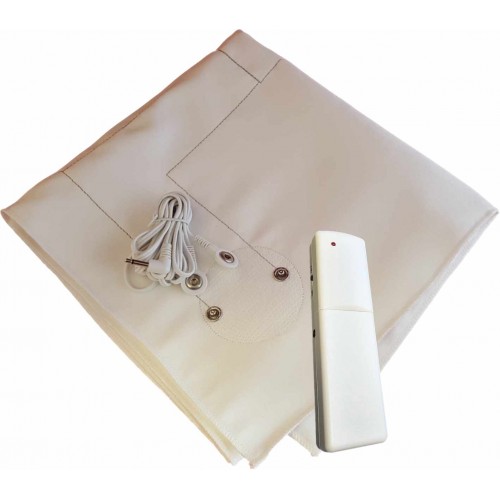

ELES-TXU2 Fabric Enuresis Bed Incontinence Detection Sensor Alarm with TXU2 Transmitter

? Machine washable fabric, tumble dry safe soft enuresis sensor
? Suitable for bed, chair, pillow, and wheelchair incontinence detection
? Ideally suited for professional care use where multiple patient sensors are required
? When used with the MPPLV4 typical signal range is 250-400M depending on obstructions

The ELES-TXU2 is an incontinence detection fabric sensor with alarm transmitter only. An alarm receiver is required (not included). The sensor is designed for use under a bed sheet to provide rapid detection of an incontinence episode. The included MPPL-TXU2 transmitter relays an alarm signal to receivers in use, pagers etc. See compatible alarm devices below.

Included: 1 x ELES-01S enuresis sensor (available separately), 1 x MPPL-TXU2 digital transmitter, 1 x sensor to transmitter connector lead, all required batteries.

Compatible Products

MPPLV4 for extended signal range up to 400M
MP-PAG31 3- Channel pager. Operates on standard signal range of 100M
NMDRX 5-channel portable alarm receiver with tone/flashing light alarm (100M)
PAG-11c 9-Device monitoring with caller ID LCD display (100M)
CTMV 3-Channel receiver with 3 x recordable voice alarm announcements (100M)
KFD01 GSM/Wi-Fi off-site caregiver alarm notification dialler (100M to dialler receiver)

Key Features

• Cotton blend enuresis sensor with alarm transmitter
• Sensor to transmitter lead connects with press-studs
• Quick dry material reduces washing cycle
• Washing machine and tumble dry safe
• Tested to 200 wash cycles
• Alarm device required to receive notifications
• Supplied with MPPL-TXU2 digital alarm transmitter
• Suited for professional care establishments
• Use singularly or as part of a multiple sensor system
• Incontinence sensors available separately

Technical Features MPPL-TXU2
Dimensions: L 135mm W 35mm D 20mm
Power 2 x AAA Alkaline batteries
Power On/Off slide switch
Trigger input connection: 2.5mm mono jack socket
On-board reed relay switch magnetic door contact (included)
Status indicator LED Power, Alarm, Low Battery
Frequency: 433MHz
Crystal controlled frequency stability
Standard range: 75-150M (open field)
Extended range: 250-400M (open field)
Range compatibility selection by jumper
Transmitter coding by jumper selection

Technical Features ELES-01S Enuresis Sensor
Machine washable and tumble dry safe sensor
Sensor connector cord (3M) with press stud connectors
Sensor wash cycles: 200 (approximately)
Quick dry material
Dimensions: Sensor 750 x 450mm
Connector lead 2M
Connector: 2.5mm Mono Jack plug
