HDKMB2 Hospital Discharge Kit for Falls Risk Patient’s
? Complete homecare kit for falls prevention and detection
? Provides early alert to bed and chair exit
? Waterproof fall detecting bracelet suitable for showering
? Caregiver pager provides audible tone and vibration alarm notifications
This kit is suitable for domestic and professional caregivers to monitor people at risk from falls. The bed and chair sensors are cordless with a self-contained transmitter to provide alarm notifications to the caregiver pager. When positioned under the bed mattress and chair cushion the alarm signal is transmitted when the persons weight is no longer detected. The waterproof bracelet contains a gravity change sensor which detects a change in height, a potential fall. The bracelet also includes an SOS button to manually summon help to the caregiver pager.

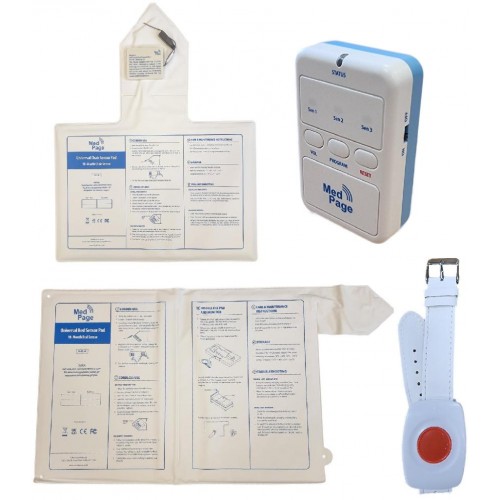

Included items: 1 x MPUFBP20T cordless bed sensor, 1 x MPUCP10T cordless chair sensor, 1 x MP-TXP11 falls bracelet, 1 x MP-PAG31 caregiver pager, all required batteries and user instructions.
Key Features
- Comprehensive falls prevention and detection system
- Suitable for home and professional caregivers
- Early notification alarm for bed exit
- Early notification for chair exit
- Selectable instant or delayed alarm option for bed sensor
- Instant notification of bracelet activated fall alarm
- Waterproof fall bracelet suitable for showering and daytime wear
- Convenient SOS button to signal caregiver pager
- All battery operated easily relocated portable system
- Supplied by Medpage with 40 years of experience in Assistive Technology
| Technical Features MP-PAG31 Caregiver Pager |
|---|
| Power source: 2 x AA batteries |
| Receiver range: 100 metres |
| Radio frequency: 433MHz |
| Dimensions: L: 80mm x H: 52mm x W: 25mm |
| Weight: 63g (without batteries) |
| Learns in (pairs) with 3 transmitters |
| 3 Channel pager receiver with LEDs for Sen 1, Sen 2, Sen 3 |
| Volume/vibration select button |
| Alarm cancel/reset button |
| Strong belt clip and lanyard attachment clip |
| Simple transmitter pairing |
| Status indicator LED: Low battery, active alarm |
| Alert options: Vibrate only, vibrate and low tone or vibrate and high tone volume |
| Pager low battery warning and sensor low battery (with compatible transmitters) |
| Side power On/Off switch |
| Technical Features MP-TXP11 Fall Detecting Bracelet |
|---|
| Powered by 1 x CR2450 long-life battery (3-year average use) |
| Waterproof to IP67 |
| Transmitting frequency 433MHz |
| Transmitter range 60-100M (typical) |
| Includes lanyard with anti-ligature point and wrist strap |
| Secure on/off setting with included carer magnet |
| Dimensions 45 x 30 x 10mm |
| Gross weight 20g (excluding lanyard/strap) |
| Reassurance LED when transmitting |
| Low battery flashing LED alert |
| Technical Features MPUFBP20T Cordless Bed Sensor |
|---|
| Dimension: 30 x 20 (76.2 x 50.8cm) |
| Total thickness: 0.8mm |
| Material: PVC |
| Operating temperature: 10C - 40C |
| Sensor pocket connector: Mini-USB female |
| Sensor contacts material: Silver/Carbon paste |
| USB mini female for transmitter connection |
| Module DIMS: 67 x 55 x 10mm |
| On/Off Switch for power |
| Bed/Chair sensor type switch |
| Operating Radio Frequency: 433MHz |
| Wireless operating range: 50-75M |
| Connection via mini-USB female socket (in pocket) |
| Low battery warning transmission |
| Technical Features MPUCP10T Cordless Chair Sensor |
|---|
| Material: PVC |
| Conductive material: Silver and Carbon paste |
| Dimensions: 38cm x 25.5cm |
| PVC thickness: 0.45mm |
| Non-conductive material thickness: 5mm |
| Total uncompressed thickness: 6.4mm |
| Transmitter MPTM11U |
|---|
| Module DIMS: 67 x 55 x 10mm |
| On/Off Switch for power |
| Bed/Chair sensor type switch |
| Operating Radio Frequency: 433MHz |
| Wireless operating range: 50-75M |
| Connection via mini-USB female socket (in pocket) |
| Low battery warning transmission |
| Battery life: Typical 18 months |
| Test confirmation LED (when removed from pocket) |
