  • MP5-UT High Sensitivity Irregular Movement Monitor

MP5-UT Irregular Movement Monitor

Reliably detects irregular movement patterns
Alerts sent to wireless pager
Large area sensor for improved movement detection and sensitivity
Suitable for babies through to adults

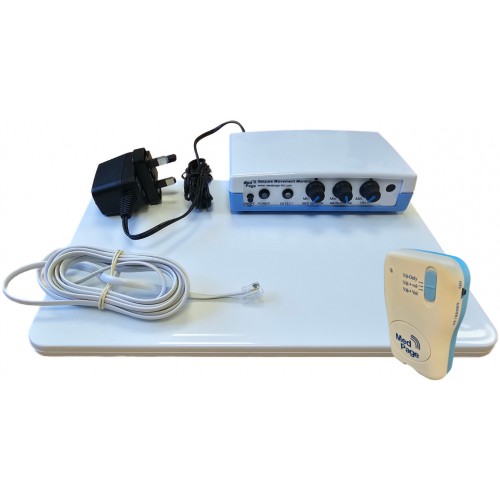

Product components

Alarm Monitor
Large area sensor ( Higher sensitivity for children or mild movements )
MPPL Pager

The Medpage MP5-UT is an advanced movement sensing alarm, specifically designed to detect irregular movements of a person whilst in bed. A cluster of muscular spasms, for example, will trigger an alarm from the movement monitor. Twitching movements or prolonged convulsive movements can be detected to trigger an alarm. The MP5-UT also features a microphone to raise alert to various sounds such as a baby / child crying or vocalisations during convulsive movements.

The MP5-UT comprises of an alarm monitor, a bed sensor and a wireless alarm pager. The sensor is placed underneath the bed mattress and connected to the alarm monitor. The monitor continuously analyses the detected body movements and differentiates between normal sleeping activity and irregular movement. The digital alarm delay control virtually eliminates false alarms by ignoring natural sleeping movements, such as turning over. Continuous irregular movement triggers an alarm to the supplied pager. When an irregular movement pattern is detected, the alarm monitor will send a wireless signal to the alarm pager. The pager alert consists of vibration and beeping, with selectable volume control.

The MP5-UT is very easy to set up, in fact for most people there will be no adjustments to make so it is instantly ready to begin its job right out of the box. If required, changing the sound / movement detection capabilities is very easy as the MP5-UT has digitally controlled adjustments for the sensor/mic sensitivity and a delayed alarm feature.

Types of detectable irregular movements

Type of movement MP5-UT Suitability
Convulsive / Restlestness The movements must last longer than 5 seconds and occur continuously, without long pauses between groups of movements.
Epileptic Seizure Movement The MP5-UT can detect repeated convulsive movements lasting longer than 5 seconds


Types of detectable sounds

Baby / Child crying
Coughing / Grunting
Loud vocalisations

Key Features

  • Large area patented monitoring sensor technology for improved movement detection
  • Suitable for Cots/Cribs with memory foam mattresses, single & double beds
  • Digital sensitivity control to suit the body weight of the user
  • Digital alarm delay control to virtually eliminate false alarms by ignoring natural sleeping movements, such as turning over
  • Includes an inbuilt sound sensor frequency tuned to continuously monitor for human sounds.
  • Can detect aural sounds such as choking, screams or grunting
  • Alert sent to wireless pager
  • Monitor powered by mains power adaptor with 12 hour battery backup
  • Tamper proof settings
  • 2 Year warranty

Suitability

The MP5-UT does not monitor physiological processes of the body, it is designed to raise an alert when irregular body movements occur, this raises awareness for further independent evaluation.

Technical Information MPPL Pager
Dimensions: L: 80mm x H: 55mm x W: 22mm
Weight: 120g
Power source: 2 x AA batteries
Transmission range: 100 metres
Status indicator LED: Low battery, active alarm
Alert options: Vibrate only, vibrate and low tone or vibrate and high tone
Technical Information MP5-UT Monitor
Power source: 12V AC/DC medical grade power adaptor
Dimensions: L: 150mm x W: 105mm x D: 45mm
Weight: 410g
Output connection: Nurse call and Telecare equipment
Status indicator LED: Power/power fail/low backup battery
Movement detection confirmation LED
Digital bed sensor sensitivity adjustment
Digital microphone sensitivity adjustment
Digital bed movement alarm delay control
Radio address code selectable
MP5-UT Bed Sensor
Sensor dimensions: 300mm x 200mm x 10mm
Interconnecting lead 3M

MP5-UT High Sensitivity Irregular Movement Monitor

  • Brands Medpage
  • Product Code: MP5-UT
  • Availability: In Stock
  • £224.41

  • Ex Tax: £187.01
