(TUMCSDRXTK) TumbleCare by Medpage chair occupancy detection alarm system

? Economical quality performance chair leaving detection alarm system
? Part of the TumbleCare fall prevention product range
? Patient leaving their chair will generate alarm signal to carer alarm
? Hard wearing system designed to stand up to rigorous caring demands

Medpage has over 30 years of experience supplying care products. This is a chair exit detection alarm system, part of the TumbleCare fall prevention range, designed by Medpage. The chair sensor is positioned under a patients chair cushion to detect their presence or exit. On exit the alarm control transmitter sends a radio alarm signal to the carer alarm station to produce an audible and flashing light alarm notification.

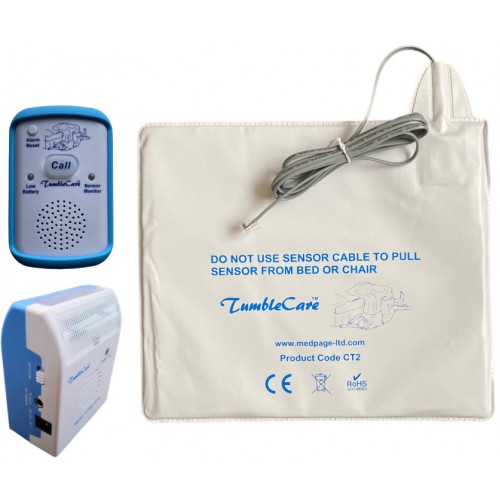

Price includes: 1 x BTXMED04 sensor transmitter, 1 x NMDRX alarm receiver, 1 x CT2T chair sensor pad, all required batteries.

Key Features

• Complete chair exit detection alarm system
• Wireless carer alarm notification to chair exit
• Reduce falls in domestic and professional care
• Hard wearing materials
• Rubber protection jacket for alarm transmitter
• Portable visual and flashing light carer alarm receiver
• Quick and easy to set up and install (kits are factory prepared)
• Quality chlorine proof bed sensor
• Suitable for single or multiple patient bed monitoring (with additional monitors)

Need to expand this system with extra items to monitor other residents?

TUMCS Alarm transmitter with chair sensor
TUMBS Alarm transmitter with bed sensor
TUMFM Alarm transmitter with floor pressure pad

Technical Features (BTXMED04 alarm controller)
Alarm radio frequency 433MHz
Transmission range: 100M (open field)
Power: Battery 3 x AA 1.5V Alkaline (included)
Power: DC 6V adaptor 300mA (optional)
Dual trigger inputs: 1 x RJ11 (pads) 1 x 6.3mm (contact)
Battery health monitoring with low warning LED
Sensor pad monitoring LED
Alarm options: Instant, 15-minute delayed, 30-minute delayed
Dimensions: 115mm x 75mm x 30mm
Weight: (excluding batteries) 130g

Technical Features (CT2T chair sensor pad)
Dimensions: 380mm x 300mm x 8mm
Cord length: 3M
Connector plug type: RJ11

Technical Features (NMDRX alarm receiver)
Top focusing lens high intensity ceiling projecting LEDs
Selectable LED colours to identify transmitter device
Multiple active alarm indication - selected transmitter colours flash alternately until alarms are cancelled
Power: 3 x AA 1.5V Alkaline batteries or optional mains AC power adaptor
Dimensions: H: 80mm x W: 68mm x D: 38mm
5 Alarm channels
3-level alarm tone volume switch (up to 96dB)
Latched or timed alarm duration (continuous or 30 seconds)
Power/signal/battery status LED
Frequency 433 MHz
100 metre transmission range
Vibrating pillow pad alarm output 3v @ 300ma via 3.5mm jack socket (deaf carers)
On/off top light selection switch
Compatible with all Easylink/Medpage/TumbleCare transmitters
