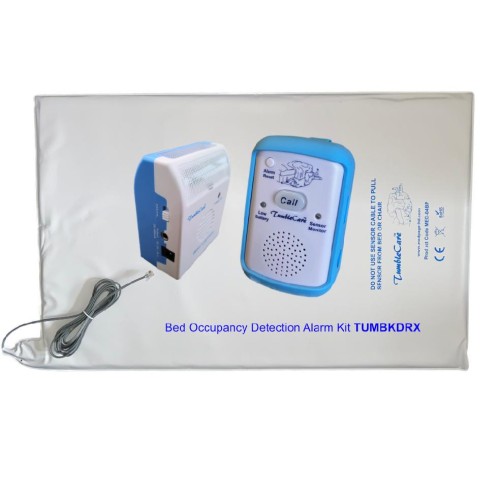

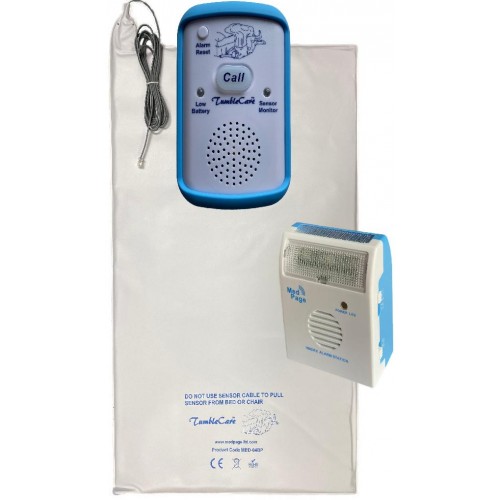

(TUMBKDRX) TumbleCare by Medpage Bed occupancy detection alarm system

?  Economical quality performance bed leaving detection alarm system
?  Part of the TumbleCare fall prevention product range
?  Patient leaving their bed will generate alarm signal to carer alarm
?  Hard wearing system designed to stand up to rigorous caring demands

This is a bed leaving detection alarm system, part of the TumbleCare fall prevention range designed by Medpage. The bed sensor positioned under a patients bed mattress will detect their presence or exit. On exit the alarm control transmitter sends a radio alarm signal to the carer alarm station to produce an audible and flashing light notification.

 Price includes: 1 x BTXMED04 sensor transmitter, 1 x NMDRX alarm receiver, 1 x MED04BP bed sensor pad, all required batteries.

Key Features

• Complete bed leaving detection alarm system
• Wireless carer alarm notification to bed leaving
• Reduce falls in domestic and professional care
• Hard wearing materials
• Rubber protection jacket for alarm transmitter
• Portable visual and flashing light carer alarm receiver
• Quick and easy to set up and install (kits are factory prepared)
• Quality chlorine resistant bed sensor
• Medpage has over 30 years of experience supplying care products
• Suitable for single or multiple patient bed monitoring (with additional monitors)

Need to expand this system with extra items to monitor other residents?

TUMCS  Alarm transmitter with chair sensor
TUMBS  Alarm transmitter with bed sensor
TUMFM  Alarm transmitter with floor pressure pad

Technical Features (BTXMED04 alarm controller)
Alarm radio frequency 433MHz
Transmission range: 100M (open field)
Power: Battery 3 x AA 1.5V Alkaline (included)
Power: DC 6V adaptor 300mA (optional)
Dual trigger inputs: 1 x RJ11 (pads) 1 x 6.3mm (contact)
Battery health monitoring with low warning LED
Sensor pad monitoring LED
Alarm options: Instant, 15-minute delayed, 30-minute delayed
Dimensions: 115mm x 75mm x 30mm
Weight: (excluding batteries) 130g

Technical Features (MED04BP bed sensor pad)
Dimensions: 750mm x 450mm x 8mm
Cord length: 3M
Connector plug type: RJ11

Technical Features (NMDRX alarm receiver)
Top focusing lens high intensity ceiling projecting LEDs
Selectable LED colours to identify transmitter device
Multiple active alarm indication - selected transmitter colours flash alternately until alarms are cancelled
Power: 3 x AA  1.5V Alkaline batteries or optional mains AC power adaptor
Dimensions: H: 80mm x W: 68mm x D: 38mm
5 Alarm channels
3-level alarm tone volume switch (up to 96dB)
Latched or timed alarm duration (continuous or 30 seconds)
Power/signal/battery status LED
Frequency 433 MHz
100 metre transmission range
Vibrating pillow pad alarm output 3v @ 300ma via 3.5mm jack socket (deaf carers)
On/off top light selection switch
Compatible with all Easylink/Medpage/TumbleCare transmitters
