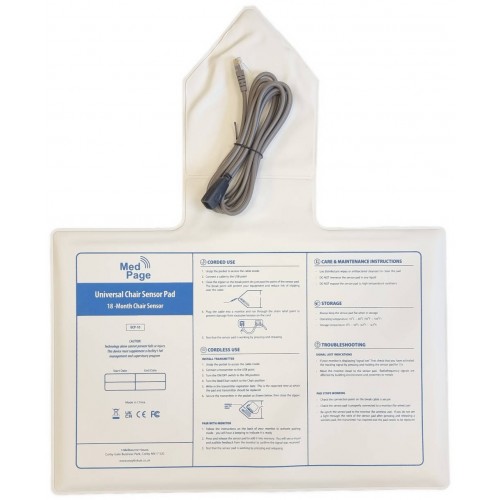

MPUCP10L Universal Chair Occupancy Detection Sensor Pad with Connection Cable

? High quality, durable under-cushion pressure sensor pad
? Provides an immediate response to carers on chair exit
? Proven to reduce falls in domestic and commercial care settings
? Can be used for single or multiple patient monitoring

The MPUCP10L is the latest sensor pad development by Medpage, providing a reliable and cost-effective means of detecting a person rising from their chair. Connection of a cable to the sensor is completed inside the pocket and protected by a zipper seal. The sensor is used as part of a system comprising of an alarm controller and or a carer alert radio pager.

Note: This product code is for sensor pad with connection cable.

Sensor Pad Options

Sensor only: Code MPUCP10
Sensor with transmitter: Code MPUCP10T

Compatible with:

MPBTX-21
MPCSA11
BMDV-11

Key Features

• Fall reducing chair sensor pad
• Designed for use under a chair cushion
• Can be used on the top of a chair or wheelchair cushion
• Hypoallergenic disinfectant resistant materials
• Supplied with a connection cable
• User instructions printed on pad for convenience
• Usage Start Date End Date record label

Technical Features MPUCP10L
Material: PVC
Conductive material: Silver and Carbon paste
Dimensions: 38cm x 25.5cm
PVC thickness: 0.45mm
Non-conductive material thickness: 5mm
Total uncompressed thickness: 6.4mm
Connector cable length: 1.95mm
Connectors: Female mini-USB to RJ12
