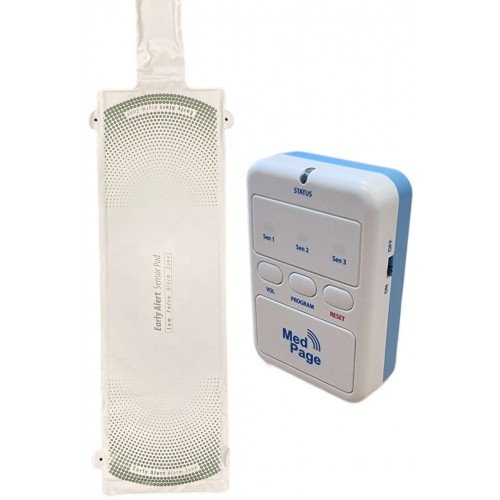

TUMWPASKIT Dual sensor bed pressure mat body detection alarm with caregiver alarm pager

? New technology bed sensor reduces false alarms using bed edge detection sensor
? An alarm is only generated when a person rises from the edge of the bed
? Integral discrete radio alarm transmitter signals caregiver pager for bed exit alert
? Ready to use straight out of the box factory set up and tested

The WPAS10 is a new technology bed sensor designed to reduce falls and false positives for bed monitoring applications. A central sensor detects when a patient lays on the bed. If they roll to the side of the bed the alarm is delayed. If they sit on the edge of the bed, or fall out of bed, an alarm signal is generated instantly. The advantage with this new design is the ability to send an alarm transmission before the person actually stands away from the bed. The included alarm pager has selectable alert modes for: vibration only, or vibration with adjustable volume audible tone. The pager being 3-channel can monitor up to three separate bed sensors, each assigned to an active alarm indicator LED.

Items included: 1 x WPAS10 bed sensor with integral transmitter, 1 x TUMPAG31 alarm pager, all required batteries, user guide.

Key Features

• Patented multi-zone detection design
• Alarm goes off when a patient is sitting on the edge of the bed
• Default delay setting in the center greatly reduces the incidence of false alarms
• Automatic reset when pressure is re-applied to the sensor pad
• Options for single side or both sides sensing
• Easy to clean & incontinence resistant
• Integral alarm transmitter for wireless alert notifications
• Suitable for homer carer one-to-one support
• Suitable for multiple bed monitoring systems for Care Homes & Hospitals
• Discrete under-mattress patient body weight detection (subject to bed type)

Technical Features TUMPAG31 Alarm Pager
Power source: 2 x AA batteries
Receiver range: 100 metres
Radio frequency: 433MHz
Dimensions: L: 80mm x H: 52mm x W: 25mm
Weight: 63g (without batteries)
Learns in (pairs) with 3 transmitters
3 Channel pager receiver with LEDs for Sen 1, Sen 2, Sen 3
Volume/vibration select button
Alarm cancel/reset button
Strong belt clip and lanyard attachment clip
Simple transmitter pairing
Status indicator LED: Low battery, active alarm
Alert options: Vibrate only, vibrate and low tone or vibrate and high tone volume
Pager low battery warning and sensor low battery (with compatible transmitters)
Side power On/Off switch

Technical Features WPAS-10 Bed Sensor
Early Alert Sensor Pad
Dimensions 30 x 10 (76 x 25cm)
Integral transmitter frequency 433MHz
Programmable radio address coding
Low battery detection
Supplied with mattress securing clips
Dual sensor: Central delayed alarm with bed edge instant alarm
