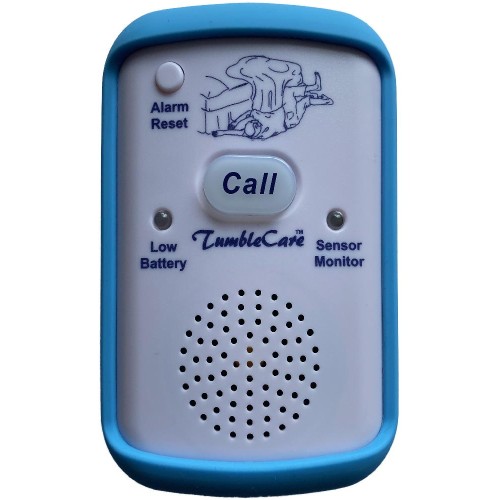

TumbleCare by Medpage Bed and chair sensor pad alarm transmitter (BTXMED04)

? Professional grade bed and chair occupancy detection sensor pad controller
? Reduce falls in domestic and professional care with wireless patient movement notification

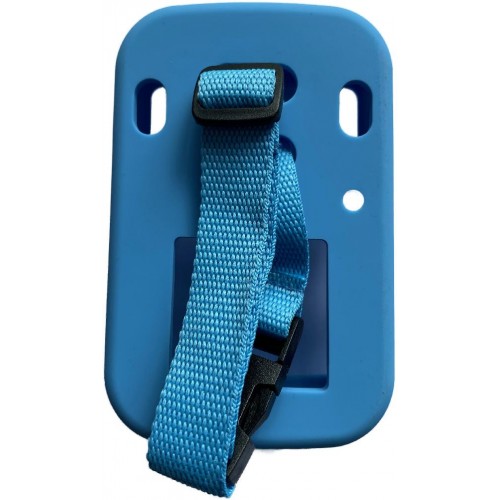

? Tough durable design supplied with anti-shock rubber protection jacket
? Compatible with TumbleCare and Medpage pressure sensor pads

The new range of TumbleCare brand of products developed by Medpage provide a reliable source of fall prevention products. The BTXMED-04 is the alarm transmitter and sensor pressure detecting controller. A patient rising from their bed or chair will generate a radio alarm signal transmission to the alarm receiver in use.

Price includes: 1 x BTXMED-04 alarm transmitter, 1 x rubber protection jacket, 3 x AA batteries.

Compatible alarm receivers

NMDRXT TumbleCare 5-Channel portable alarm receiver (available from August 2020)
NMDRX Medpage 5-Channel portable alarm receiver
MPPL Medpage tone/vibration alert radio pager
PAGT-31 TumbleCare 3-Channel vibration/tone alert pager

Compatible pressure sensor pads

MED-04BP TumbleCare Bed pad
SEN-1 Bed pad
CT-2 Chair pad
SEN-2 Chair pad
MED-04FP TumbleCare Large non-slip floor pressure mat
FMAT-02 Large non-slip floor pressure mat

Key Features (Alarm Transmitter)

• Pressure sensor pad alarm controller
• Wireless alarm signal to carer receiver
• Tough durable design
• Supplied with rubber protection jacket
• Selectable alarm response (instant, delayed 15 minutes, delayed 30 minutes)
• Suitable for individual or multi-patient systems
• Nurse call peer push input socket
• Central illuminated patient call button
• Alarm reset button
• Sensor pad strain relief protector

Technical Features
Alarm radio frequency 433MHz
Transmission range: 100M (open field)
Power: Battery 3 x AA 1.5V Alkaline (included)
Power: DC 6V adaptor 300mA (optional)
Dual trigger inputs: 1 x RJ11 (pads) 1 x 6.3mm (contact)
Battery health monitoring with low warning LED
Sensor pad monitoring LED
Dimensions: 115mm x 75mm x 30mm
Weight: (excluding batteries) 130g
