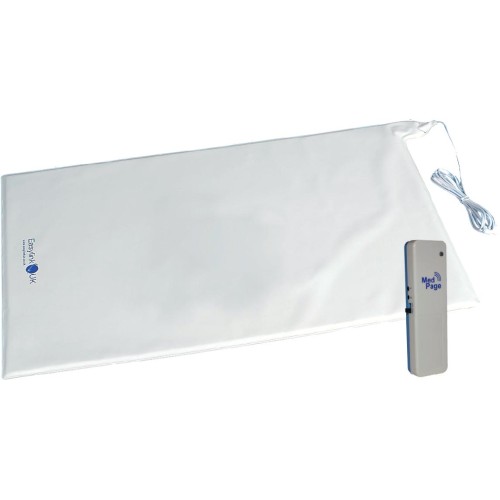

NMDTX-CT3 Long range POCSAG transmitter with CT3 pressure sensor mat

? Long range multi-function transmitter with floor/bed pressure sensor for use with Medpage data message pagers
? Can be used for bed leaving or floor pressure mat using transmitter mode selection switch
? This product requires a Medpage alarm receiver (EM300, EM400 data message pager)
? Can be used as part of a multiple bed/chair/floor pressure mat monitoring alarm system

If multiple sensor care products are required with portable alarm notifications of call location and or patient identification, the Medpage data message pagers provide a perfect long range solution. The transmitter (NMDTX) can be programmed with short messages for broadcast when triggered by a sensor, resulting in message display on the data pager.

Technical information (Sensor)
Dimensions: 750 x 450mm x 8mm
Connection cord 3M
Disinfectant: resistant (normal dilution strength)
2.5mm Connector jack plug
Colour: White

Technical Information (Transmitter)
Multi-Function sensor transmitter
Long range transmission (up to 400M)
2 x Trigger Input Sockets 2.5mm & 3.5mm
Trigger mode selectable for N/O or N/C
Secure On/Off Power switch (selectable)
FSK transmission 433.92MHz @ 10mW
POCSAG Message programmable
Optional programming software available (for trade only)
Dimensions: L 145mm W 40mm D 22mm
Powered by 2 x AAA batteries
12 Month typical use before battery change
Low battery warning LED with transmission message
System status LED
Mode Selection Options:
Bed/Chair leaving alarm (with 15-minute alarm delay option)
Floor pressure mat alarm
Magnetic door sensor alarm (with door open timer)
Water level & Enuresis sensor detection
Programmable alert messages (when used with data pager EM300)
Pre-programmed standard messages for Bed, Door, Floor mat.
Multi-Receiver addressable
